Diemaking Equipment

At VARO we offer precision diemaking for reliable performance.

Manual and semi-automatic machines for die makers

VARO produces manual and semi-automated machines for diemaking. We have made this type of equipment for more than 50 years, which means that we have a lot of experience and expertise within this area. We are mainly known for our pneumatic shears, cutters and benders.

VARO deliver:

  • Semi-automated cutters
  • Combination shears
  • Benders

VARO is uncompromising in its choice of technical solutions, and this philosophy is reflected in our die-making equipment. As a result, we deliver durable, high-quality machines built for a long service life.

What are your requirements?

Contact Rikke Rudolph

42-0/42-0-P Shear

Manual or pneumatic shears. For straight cuts as well as single and double lips in medium hard steel rules in 1.5 pt., 2 pt., 3 pt. and 4 pt. thickness.

As standard, the machine is delivered with a 400 mm. long caliber gauge.

Maximum cutting capacity:

  • Height: 32,00 mm
  • Thickness: 3 pt. (42-0) / 4 pt. (42-0-P)

43-0/43-0-P Notcher

The 43-0-P pneumatic notcher makes notches with a round top in 1.5 pt., 2 pt., 3 pt. and 4 pt. medium hard steel rules. The notch depth is steplessly variable from 0 to 20 mm.

As standard the machine is equipped with a Tool for 8mm wide notches. Two gauge plates (for 18 and 15 mm. deep notches) are supplied with the machine. A manual version is also availabe (43-0)

Maximum cutting capacity:

  • Tykkelse: 4 pt.

47-0-P Pneumatic Shear

The 47-0-P pneumatic shears makes straight cuts as well as single and double lips in facet bevel rule only. The cutting capacity is up to 32.00 mm. high medium hard steel rules in 2 pt., 3 pt. and 4 pt. thickness.

The machine is delivered preset for 2 pt., 3 pt. or 4 pt. rules as per choice. As standard the machine is delivered with a 400 mm. long caliper gauge.

Maximum cutting capacity (facet bevel rule only:

  • Height: 32,00 mm
  • Thickness: 4 mm

48-0/48-0-P Shear

The 48-0-P pneumatic shears make straight cuts in 50.80 mm. (2″) high medium hard steel rules and in 50 mm. high x 2 mm. thick stripping blades as well as straight cuts in medium hard bent rules. The cutting capacity is 1.5 pt., 2 pt., 3 pt. and 4 pt.

As standard the machine is delivered with 2 sets of magnetic guide bars, 4 gauge plates and a 400 mm. long caliper gauge. The machine is also available in a manual version (48-0)

Maximum cutting capacity:

  • Height: 50,80 mm
  • Thickness: 4 pt.

53-0-R Pneumatic Shear

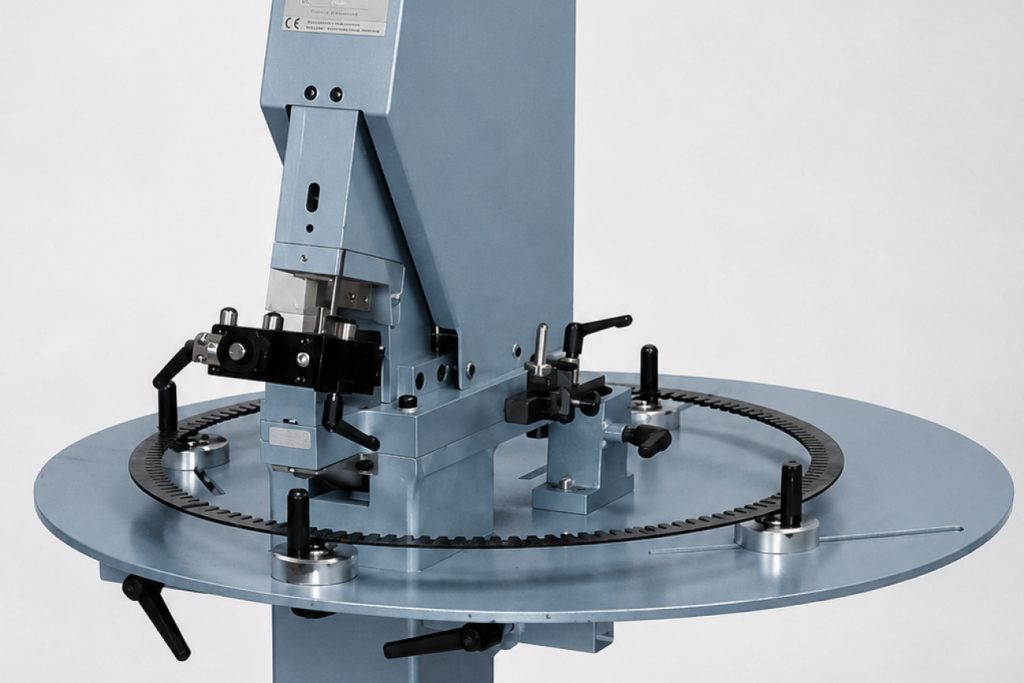

The 53-0-R is a pneumatic-powered machine for faster and easier cutting of rotary rules as well as flatbed rules. The special guide system makes it possible to get an accurate straight cut, mitre or notch. Adjustable rolles in the stand allow for different sizes of rotary rule coils to be placed on the stand and for the smooth feeding of the rule into the machine. A foot pedal is used to operate the machine, leaving both hands free to feed and hold the rule. An adjustable stop can be used if identical pieces are acquired.

Maximum cutting capacity:

  • 4 pt.
  • 32,00 mm
  • Min. diameter of rotary rule: 305 mm
  • Max. diameter på rotary rule: 607 mm

57-0/57-0-P Combi Shear

The manual combination shears 57-0 offers all basic operations; straight cutting, lipping and notching medium hardened steel rules.

The new ”click” guiding system makes it easy to adjust the machine for 1.5, 2, 3 or 4 point rule. The depth of the notch is adjustable. Width of notch is 8mm (optional: 6mm)

As standard the machine is delivered with a 400mm calipers.

Maximum cutting capacity:

  • Height: 22 – 26 mm
  • Thickness: 2 – 4 pt. (VARO recommends the pneumatic 57-0-P for cutting 4 point)
