Diemaking Equipment for All Purposes
VARO produces manual and semi-automated machines for diemaking. We have made this type of equipment for more than 50 years, which means that we have a lot of experience and expertise within this area. We are mainly known for our pneumatic shears, cutters and benders.
VARO diemaking equipment:
- Semi-automated cutters
- Combination shears
- Benders
VARO never compromises when it comes to finding the right technical solution. This also applies to our diemaking solutions, which are high quality equipment with long durability.
Diemaking equipment – high quality and long durability
Diemaking equipment – high quality and long durability
Diemaking equipment – high quality and long durability
Diemaking equipment – high quality and long durability
42-0/42-0-P Shear
Manual or pneumatic shears. For straight cuts as well as single and double lips in medium hard steel rules in 1.5 pt., 2 pt., 3 pt. and 4 pt. thickness.
As standard, the machine is delivered with a 400 mm. long caliber gauge.
Maximum cutting capacity:
- Height: 32.00 mm.
- Thickness: 3 point (42-0)/ 4 point (42-0-P)
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

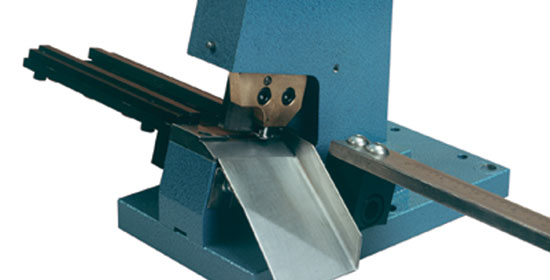

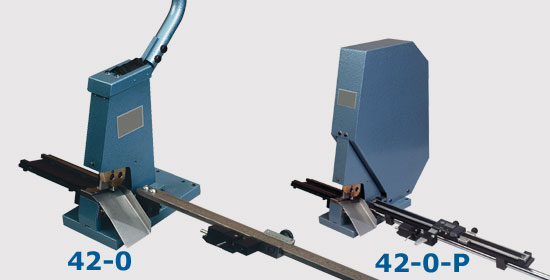

42-0 and 42-0-P

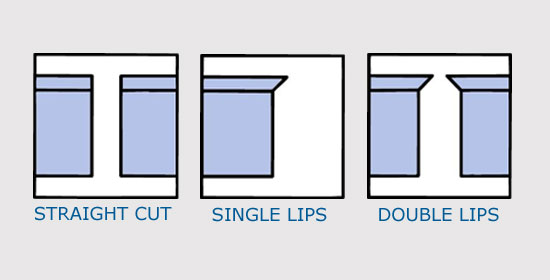

Types of cuts
43-0/43-0-P Notcher
The 43-0-P pneumatic notcher makes notches with a round top in 1.5 pt., 2 pt., 3 pt. and 4 pt. medium hard steel rules. The notch depth is steplessly variable from 0 to 20 mm. As standard the machine is equipped with a Tool for 8mm wide notches. Two gauge plates (for 18 and 15 mm. deep notches) are supplied with the machine.
A manual version is also availabe (43-0)
Maximum cutting capacity:
- Thickness: 4 pt.
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

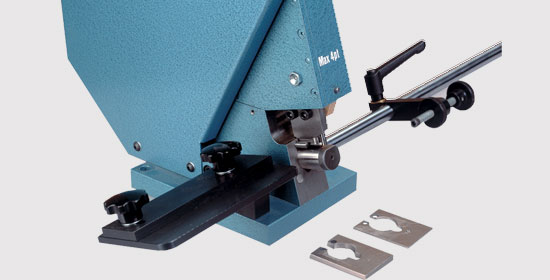

43-0-P pneumatic notcher

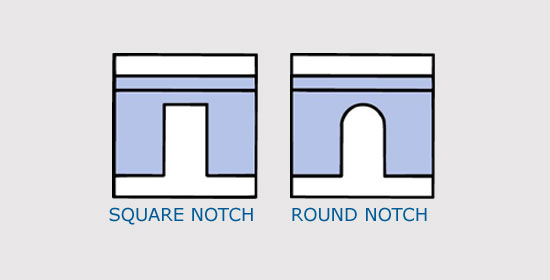

Types of cuts
47-0-P Pneumatic Shears
The 47-0-P pneumatic shears makes straight cuts as well as single and double lips in facet bevel rule only. The cutting capacity is up to 32.00 mm. high medium hard steel rules in 2 pt., 3 pt. and 4 pt. thickness.
The machine is delivered preset for 2 pt., 3 pt. or 4 pt. rules as per choice. As standard the machine is delivered with a 400 mm. long caliper gauge.
Maximum cutting capacity (facet bevel rule only):
- Height: 32.00 mm
- Thickness: 4 mm.
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

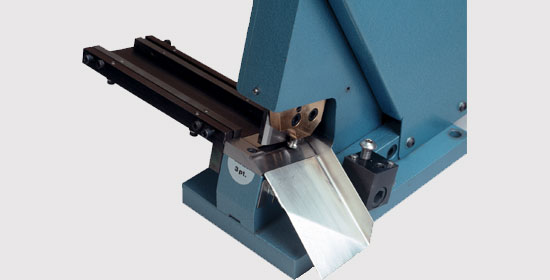

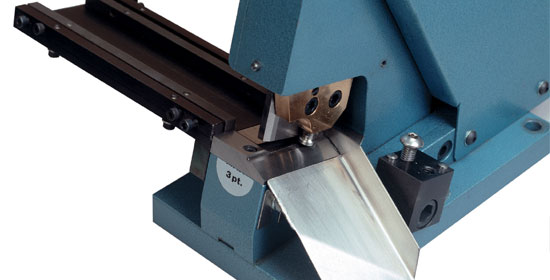

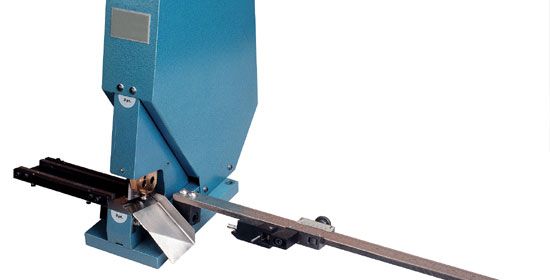

47-0-P pneumatic shears,

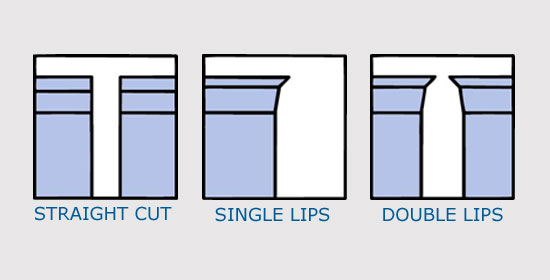

Types of cuts
48-0/48-0-P Shears
The 48-0-P pneumatic shears make straight cuts in 50.80 mm. (2") high medium hard steel rules and in 50 mm. high x 2 mm. thick stripping blades as well as straight cuts in medium hard bent rules. The cutting capacity is 1.5 pt., 2 pt., 3 pt. and 4 pt.
As standard the machine is delivered with 2 sets of magnetic guide bars, 4 gauge plates and a 400 mm. long caliper gauge. The machine is also available in a manual version (48-0)
Maximum cutting capacity:
- Height: 50.80 mm.
- Thickness: 4 pt.
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

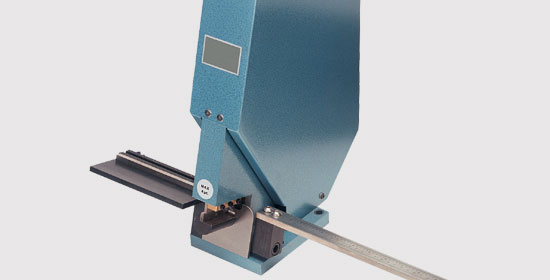

48-0-P pneumatic shears. Also available in a manual 48-0 version

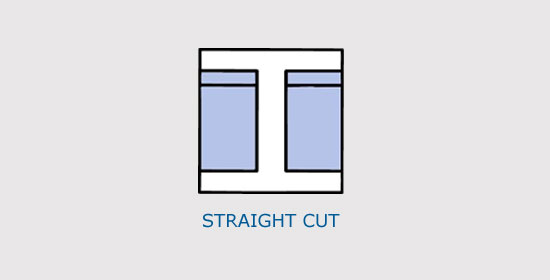

Type of cut
49-0 Electric Circle Bender
The 49-0 Electric circle bender makes circles and curves in maximum 4 pt. medium hard rules.
As standard the machine is supplied with one set of tools (one standard male Tool and one standard female Tool).
Maximum cutting capacity:
- Height: 50.00 mm.
- Thickness: 4 pt.
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

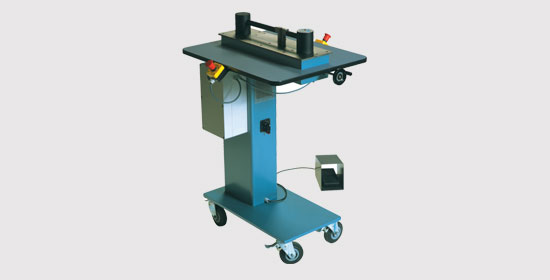

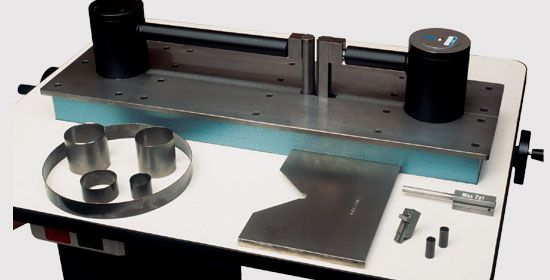

49-0 Electric circle bender
Types of cuts
53-0-R Pneumatic Shears
The 53-0-R is a pneumatic-powered machine for faster and easier cutting of rotary rules as well as flatbed rules. The special guide system makes it possible to get an accurate straight cut, mitre or notch. Adjustable rolles in the stand allow for differetn sizes of rotary rule coils to be placed on the stand and for the smooth feeding of the rule into the machine.
A foot pedal is used to operate the machine, leaving both hans free to feed and hold the rule. An adjustable stop can be used if identical pieces are aquired.
Maximum cutting capacity:
- 4 point
- 32.00 mm.
- Min. diameter of rotary rule: 305 mm.
- Max. diameter of rotary rule: 607 mm.
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

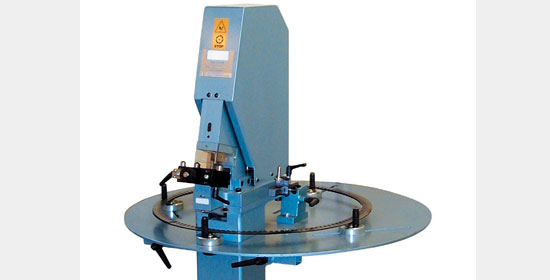

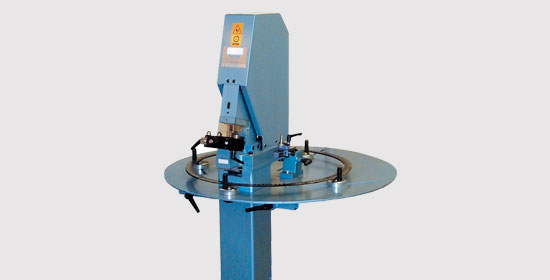

53-0-R pneumatic shears

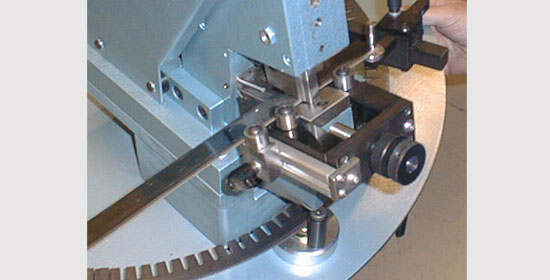

53-0-R pneumatic shears. Multi-purpose guide system.
53-0-R pneumatic shears. Multi-purpose guide system.
55-0 perforating machine
Adjustable perforating machine for the production of perforating and cut-crease rules.
Maximum cutting capacity:
- Height: 30.00 mm.
- Thickness: 4 point
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

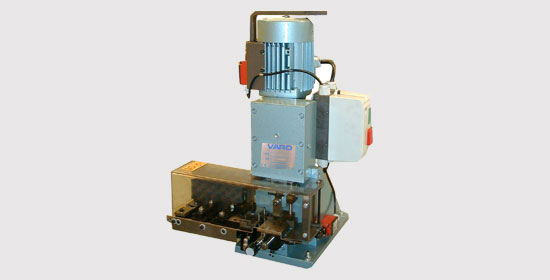

55-0 perforating machine

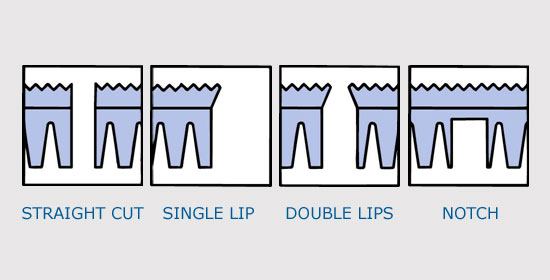

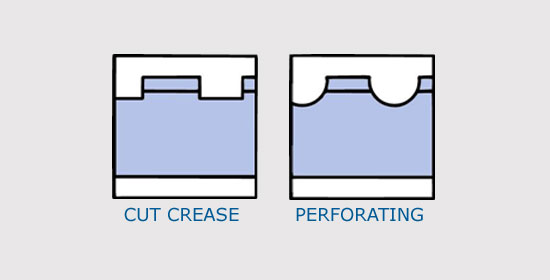

Types of cuts
57-0/57-0-P combi shears
The manual combination shears 57-0 offers all basic operations; straight cutting, lipping and notching medium hardened steel rules. The new ”click” guiding system makes it easy to adjust the machine for 1.5, 2, 3 or 4 point rule. The depth of the notch is adjustable. Width of notch is 8mm (optional: 6mm)
As standard the machine is delivered with a 400mm calipers.
Maximum cutting capacity
- Height: 22 - 26 mm
- Thickness: 2-4 pt (VARO recommends the pneumatic 57-0-P for cutting 4 point)
For further information please contact our diemaking sales manager Rikke Rudolph at: +45 52 14 46 56 or varo@varo.dk.

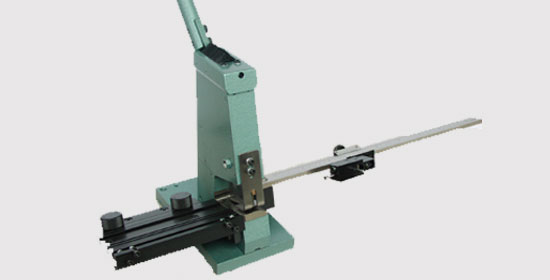

57-0 combi shears

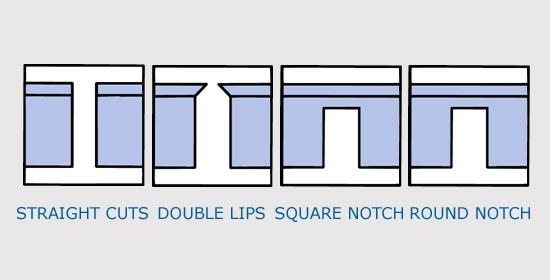

Types of cuts
